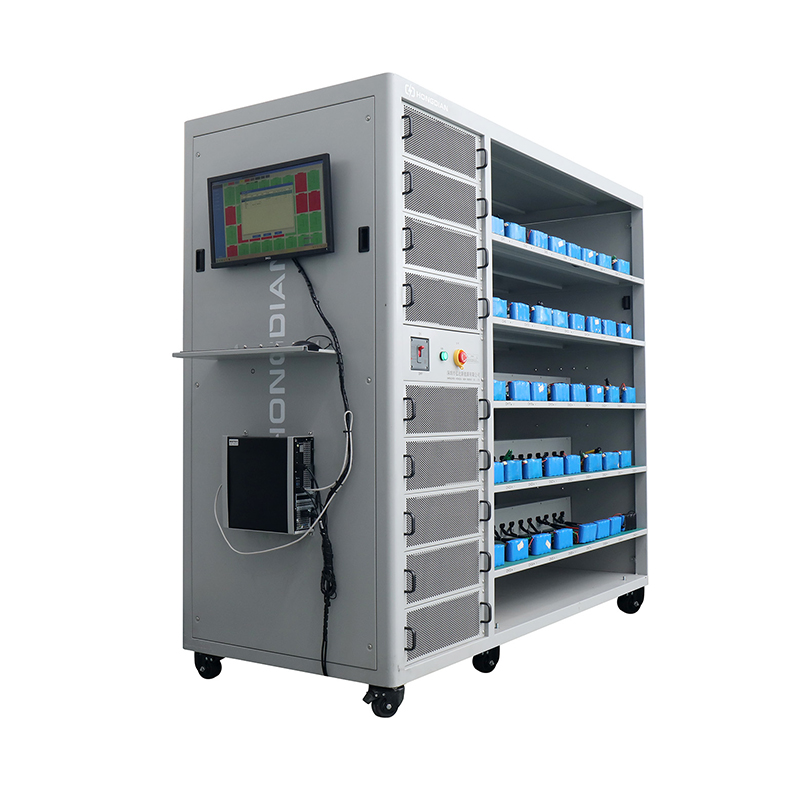

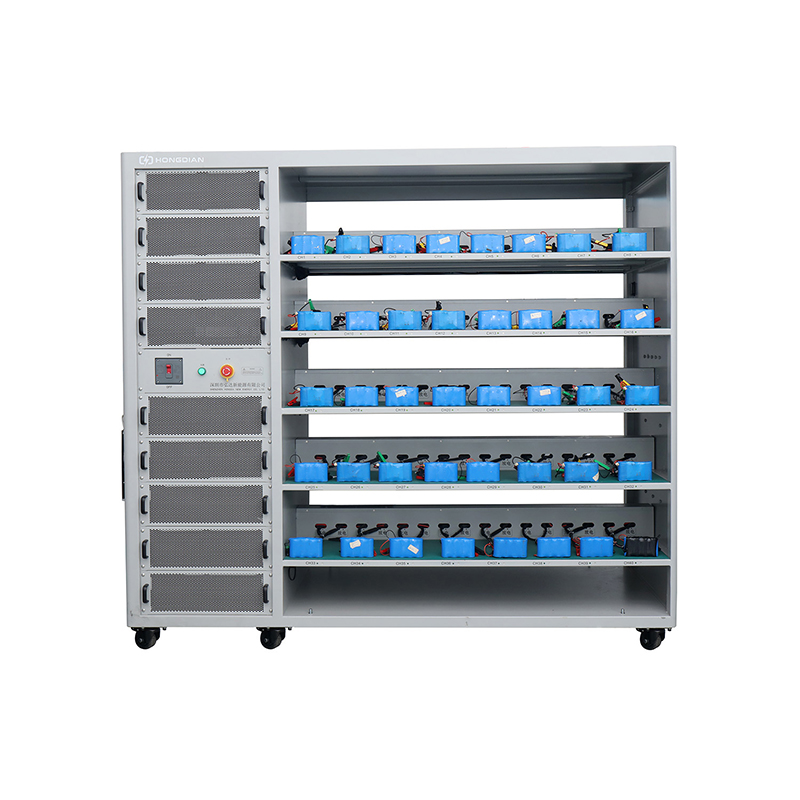

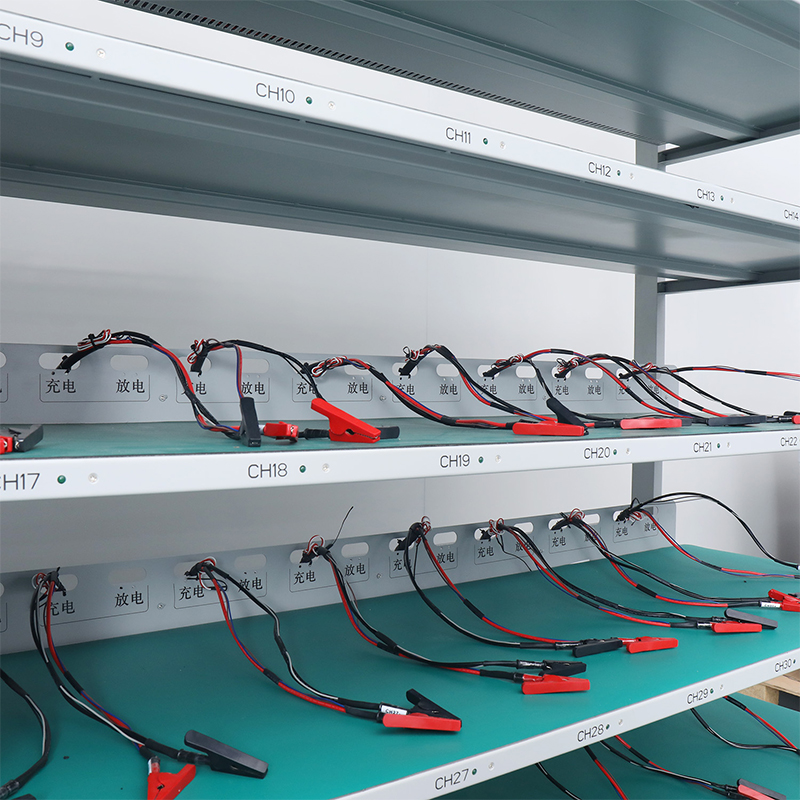

Featuring ultra-low-noise operation, it ensures minimal interference for accurate measurements in lab or production environments. Compliant with global industry standards and CE-certified, the system guarantees safety and interoperability. Equipped with a high-precision constant current (CC) and constant voltage (CV) source, it delivers ±0.05% accuracy for critical R&D and quality control applications. Accelerate workflows with rapid charging capabilities while reducing long-term costs through robust design and minimal maintenance requirements. Future-proof your investment with lifetime free software upgrades, ensuring continuous compatibility with evolving battery technologies and testing protocols. Ideal for manufacturers, R&D centers, and certification labs seeking uncompromised performance and scalability.
Technical Parameter

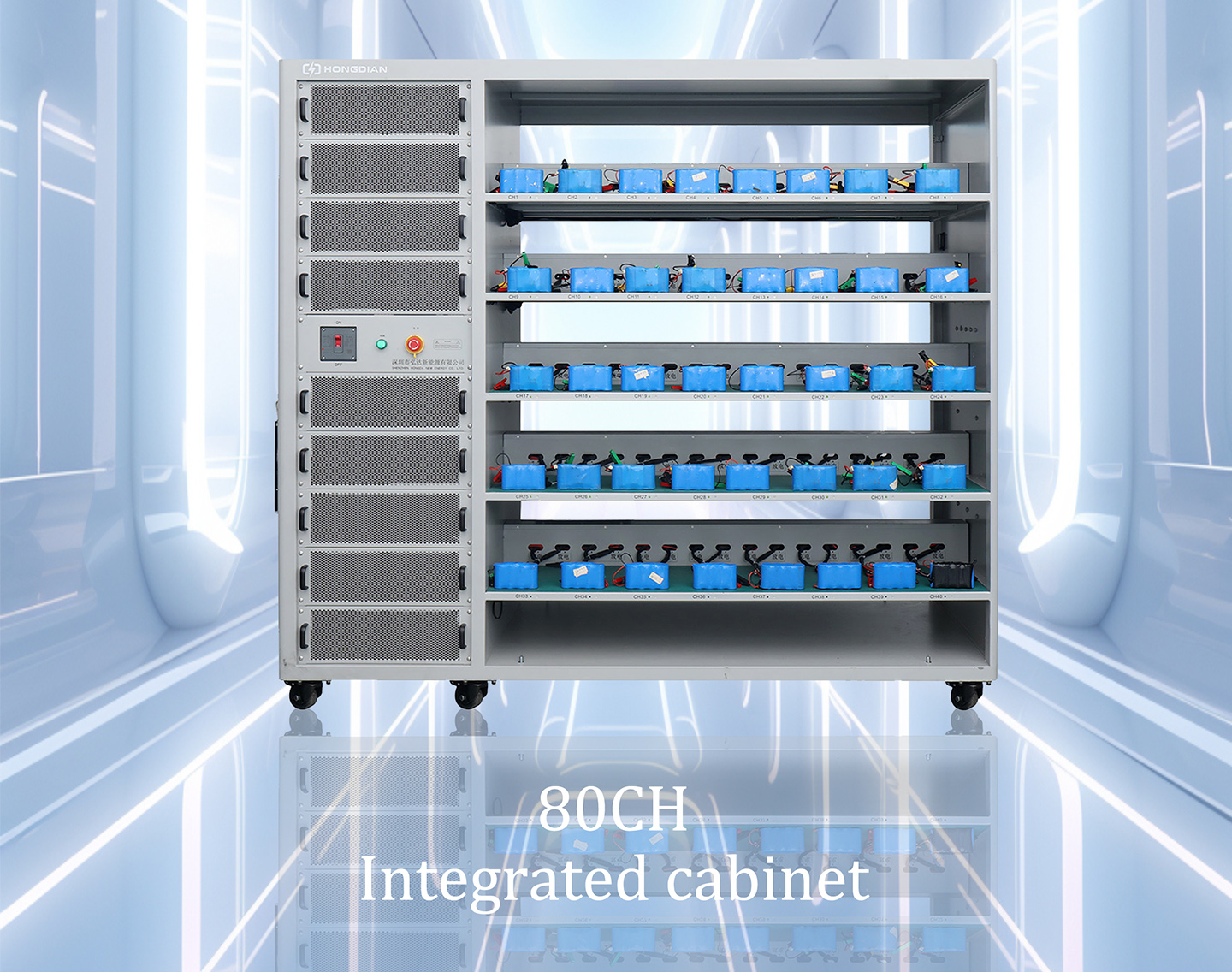

80CH integrated cabinet parameters
Voltage |
Model |
Vollag accuracy |
Minimum |
Minimum |
Current |
Charge |
30V |
HD-30V10A-80CH |
0.05%FS |
30mA |
6V |
10ms |
20ms |
HD-30V20A-80CH |
0.05%FS |
30mA |
6V |
10ms |
20ms |
|
HD-30V30A-80CH |
0.05%FS |
30mA |
6V |
10ms |
20ms |
|
60V |
HD-60V10A-80CH |
0.05%FS |
30mA |
6V |
10ms |
20ms |
HD-60V20A-80CH |
0.05%FS |
30mA |
6V |
10ms |
20ms |
|
100V |
HD-100V10A-80CH |
0.05%FS |
30mA |
6V |
10ms |
20ms |
Voltage |
Model |
Maximum |
Feedback |
olage |
Power |
Weight |
Size |
30V |
HD-30V10A-80CH |
92% |
90% |
AC380V |
24KW |
≤400KG |
W:2120mm H:1950mm D:900mm |
HD-30V20A-80CH |
92% |
90% |
48KW |
≤400KG |
|||
HD-30V30A-80CH |
92% |
90% |
72KW |
≤400KG |
|||
60V |
HD-60V10A-80CH |
92% |
90% |
48KW |
≤400KG |
||
HD-60V20A-80CH |
92% |
90% |
96KW |
≤400KG |
|||
100V |
HD-100V10A-80CH |
92% |
90% |
80KW |
≤400KG |
AC input parameters | |||
Input power supply |
AC 380V±10% 50/60±5Hz |
Inputimpedance |
≥1MΩ |
Power factor |
≥99%（Full load） |
Feedback efficiency （MAX） |
≥90%（Full load） |
THDI |
≤5%（Full load） |
||
DC output parameters | |||
voltage precision |
±0.05%FS |
Electric current precision |
±0.05%FS |
voltage Resolution |
1mV |
Current Resolution |
1mA |
Current response time |
10ms（10%FS ～ 90%FS) |
Auxiliary channel type |
NTC |
Charge and discharge conversion time |
20ms（-90%FS ～ 90%FS） |
Channel control mode |
All channels can be controlled independently |
Step function characteristics | |||
Minimum data recording time |
10ms |
Cycle number |
65535 |
Number of work steps |
2000 |
Loop nesting |
5 |
Support experimental esting |
Battery cycle life test、Battery pack capacity test、Battery charge/discharge characteristic test、Charge retention test of battery pack、Charge and discharge efficiency test of battery pack、Charge and discharge efficiency test of battery pack |
||
Charge and discharge mode |
Static, pause, constant current charging CC, constant voltage charging CV, constant resistance charging CR, constant current and constant Voltage charging CCCV, constant power charging CP, constant current discharge DC, constant power discharge DP, constant resistance discharge DR, DC Internal Resistance Test (DCIR) |
||
Cut-off condition |
Voltage, current, capacity, energy, time, power, number of cycles, BMS parameters, custom advanced parameters (support one or more logic and or combination) |
||
Execution action type |
Jump, pause, protect, Next |
||
485/DBC File import |
Supports file editing, saving, and importing |
||
DcInternal Resistance Test (DCIR) |
SupportDCIRwork step,hardwarereal-imecalculation,supportgraphic twokindsoftesting |
||
Data export mode |
Export in Excel or CSV format |
||
Protection function | |||
AC side protection |
Powergridvoltage over/under、voltageprotection,surge、protection,anti-island protection, over and under frequencyprotection,hardware over temperature protection, self-detection protection, etc |
||
DC side protection |
under voltage protection, hardware over temperature protection, battery channel line reverse connection protection |
||
Battery side comprehensive |
Upper and lower limit protection of the total battery voltage, upper and lower limit protection of the battery voltage, upper and lower limit protection of the battery temperature, upper and lower limit protection of the battery charge and discharge current, upper and lower limit protection of the battery capacity, BMS communication outage protection, network outage protection, etc |
||
Power failure data protection |
With memory power off protection function, it can effectively avoid data loss caused by power off or can continue to run at the process break point without modifying the process after the call |
||
Class of protection |
IP20 |
Cooling mode |
Forced air cooling |
operating temperature range |
0℃-45℃ |
noise |
≤80dB |
Main Testing Functions
Cycle Life Test
Capacity Test
Charge discharge characteristic test
DC internal resistance test
Overcharge/Over discharge Test
Third party linkage testing
Temperature characteristic test
CAN/RS485 communication
Customer usage site
Human-computer interaction
Channel Display Interface

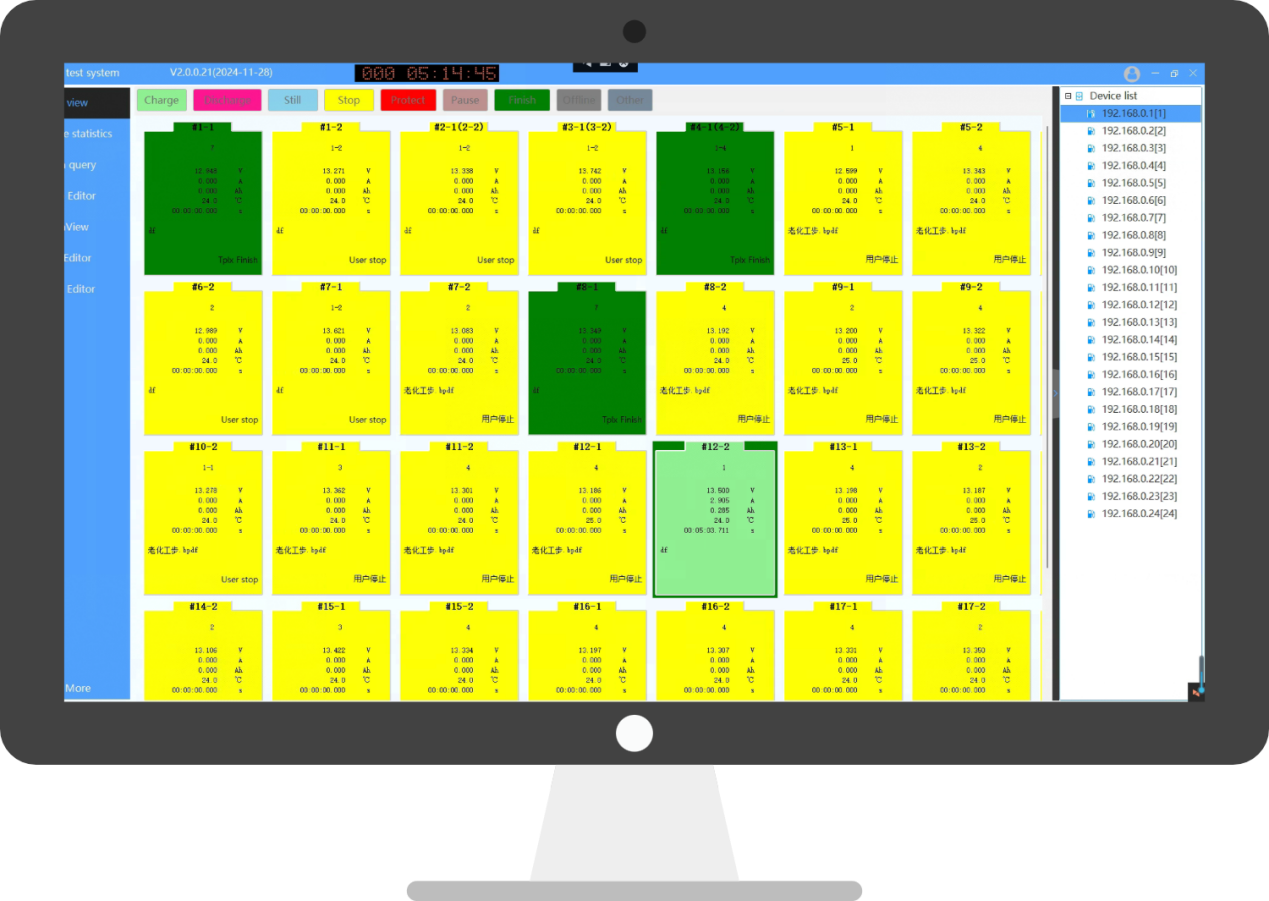

The channel information interface displays a list of device IP selections, and the display information and data units can be set. The working mode color can be set to display process information, and the testing process is intuitive.
Data analysis interface

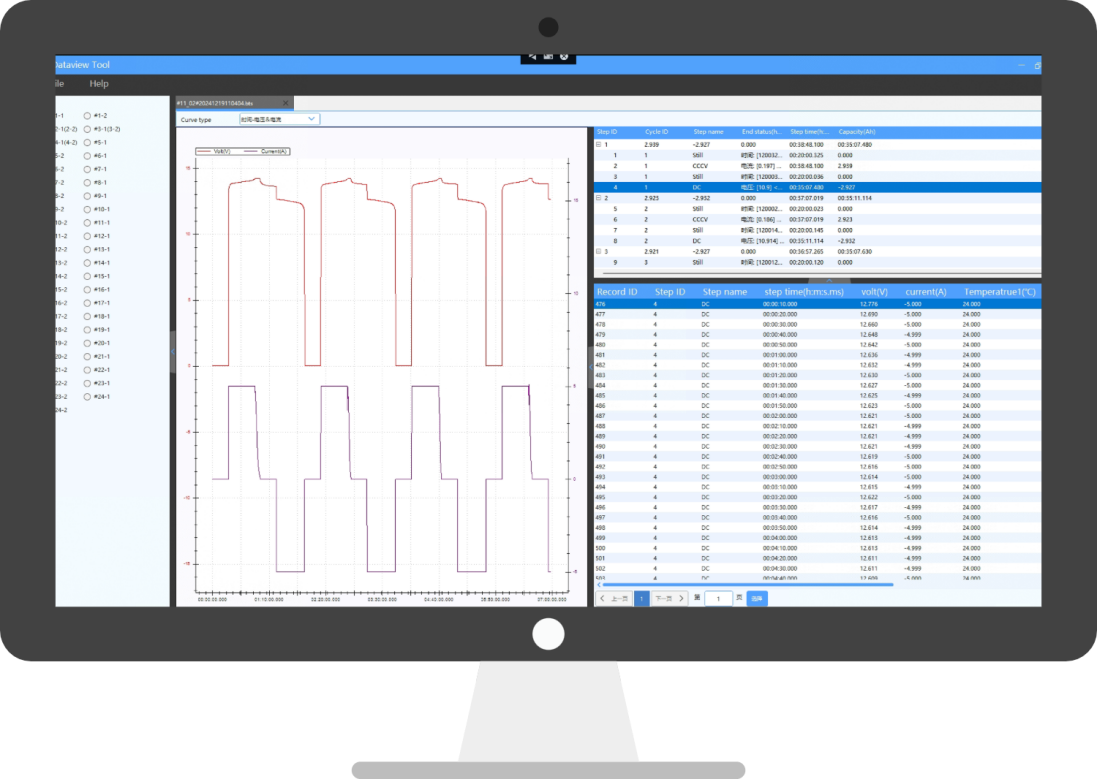

The left side of the data analysis interface is the curve, and the right side is the data list, which can display curves or data separately or simultaneously. Support querying historical data based on various information such as date, device number, barcode, etc., and can export reports in various formats such as EXCEL.
Process Editing Interface

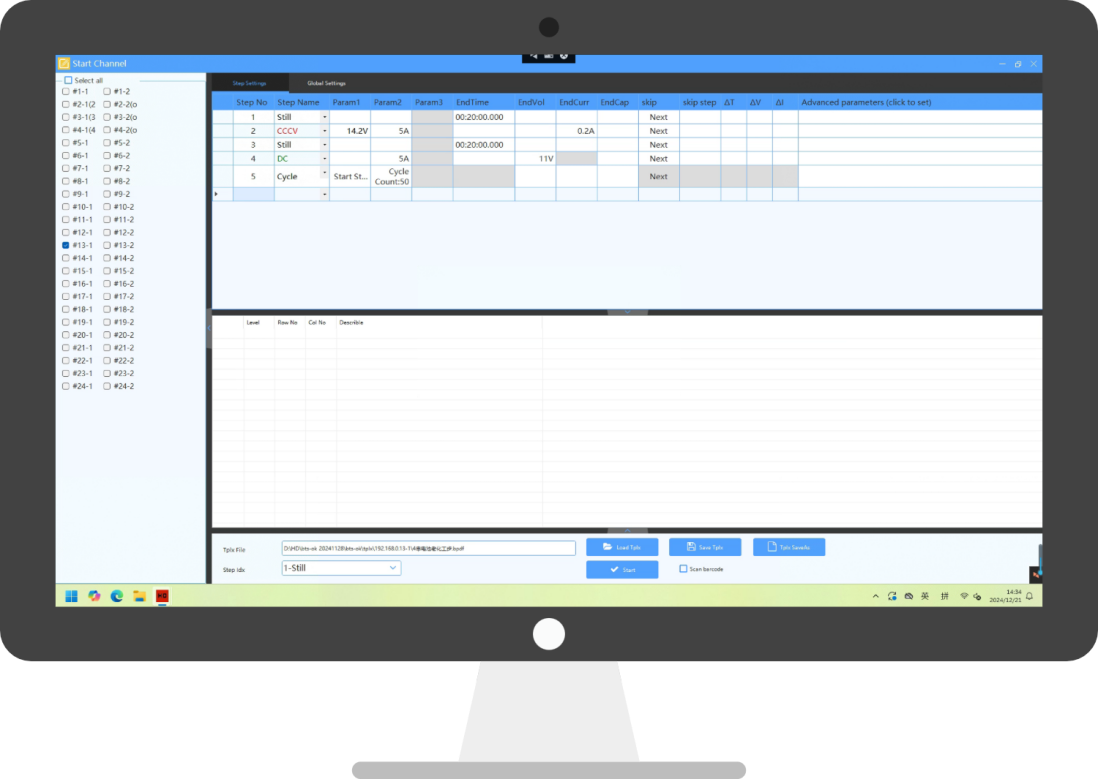

The process editing interface adopts a script editing mode, with a variety of step types and deadline conditions to choose from. Support DBC data import, with comprehensive global and single step protection conditions and recording conditions.

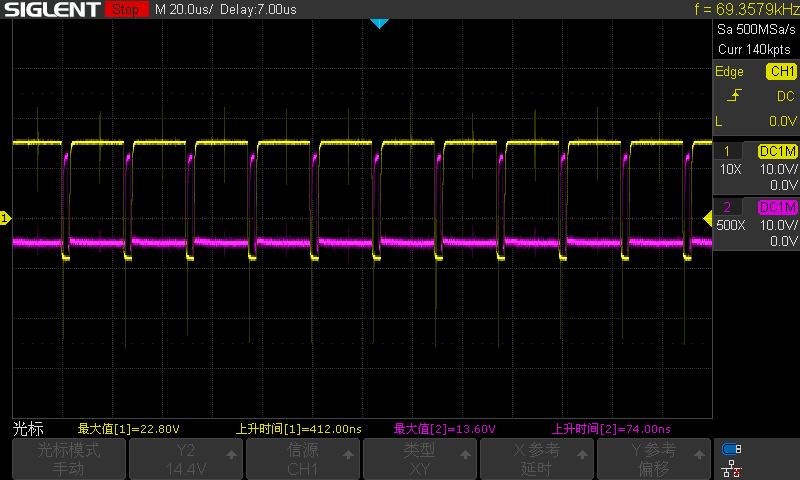

High precision, fast current response
Multi channel parallel connection can increase the application range of current, making the device capable of both multi-channel testing and high current testing, and can be applied to a wider range of tested objects.
✔ Voltage/current measurement accuracy: ± 0.05% F.S.
✔ Voltage output range: 6-100V, measurement resolution 1mV.
✔ Current output range: ± 30A, measurement resolution 1mA.

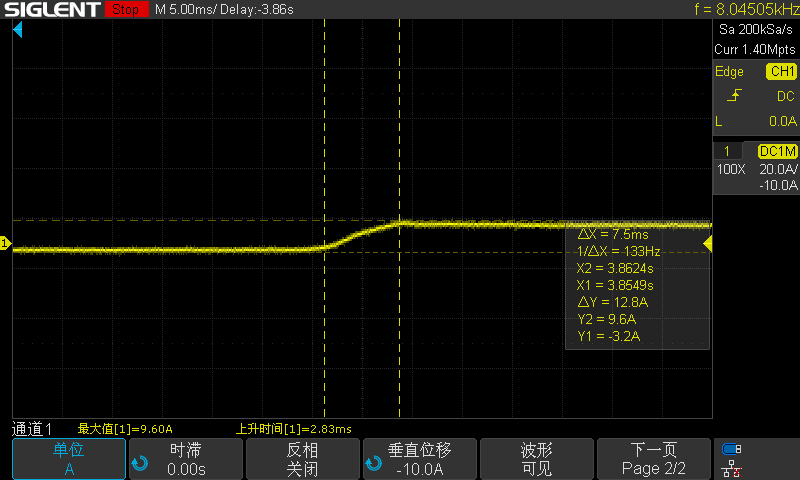

✔ Current response time (10%~90% FS):<10ms.
✔ Charge discharge switching time (+90%~-90% FS):<20ms.
Complete protection function
The testing process is secure and the data security is worry free
✔ Hardware Protection: Overvoltage/Overcurrent/Overpower Protection, Short Circuit Protection, Power Failure Protection, Over Temperature Protection, Leakage/Undervoltage Protection, AC Reverse Connection Protection
✔ Software protection: overvoltage/overcurrent protection, capacity protection, power-off continuity, over temperature protection, abnormal trend protection, voltage protection, abnormal protection
Our advantages
Advanced Multi-Channel Battery Testing System
Designed for high-precision battery R&D and quality validation, our cutting-edge testing solution redefines efficiency with industry-leading specifications:
Unmatched Sequence Flexibility
PC-based software supports ≥2,000 programmable test steps and up to 65,535 cycle iterations, enabling ultra-long-duration testing protocols.
Intelligent Logic Control
5-level nested loop architecture allows complex test scenario configurations, adapting to diverse battery testing requirements.
Comprehensive Data Visualization
Real-time multi-curve display tracks 10+ parameters simultaneously (voltage, current, temperature, etc.) with customizable axis configurations and overlay comparisons.
User-Centric Interface
Drag-and-drop curve customization enables any parameter combination visualization, while export-ready graphics support scientific reporting.
Ideal for EV battery packs, energy storage systems, and consumer electronics testing, It combines CE certification standards with intuitive software, delivering lab-grade precision for R&D through mass production phases.
