Industrial-Grade Battery Cycle Life Test Chambers for R&D Labs 60V/100V/120V

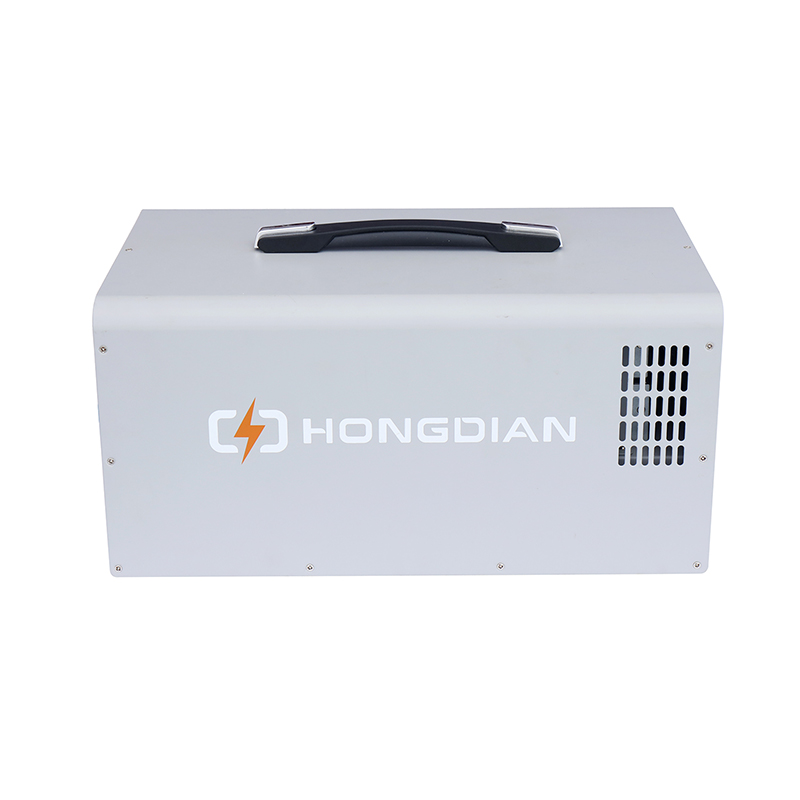

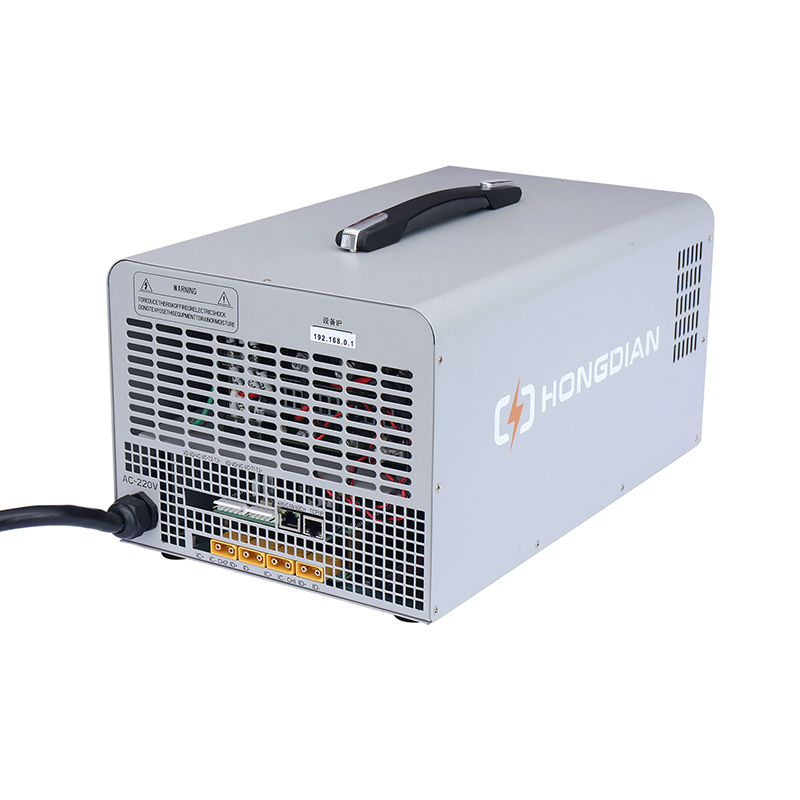

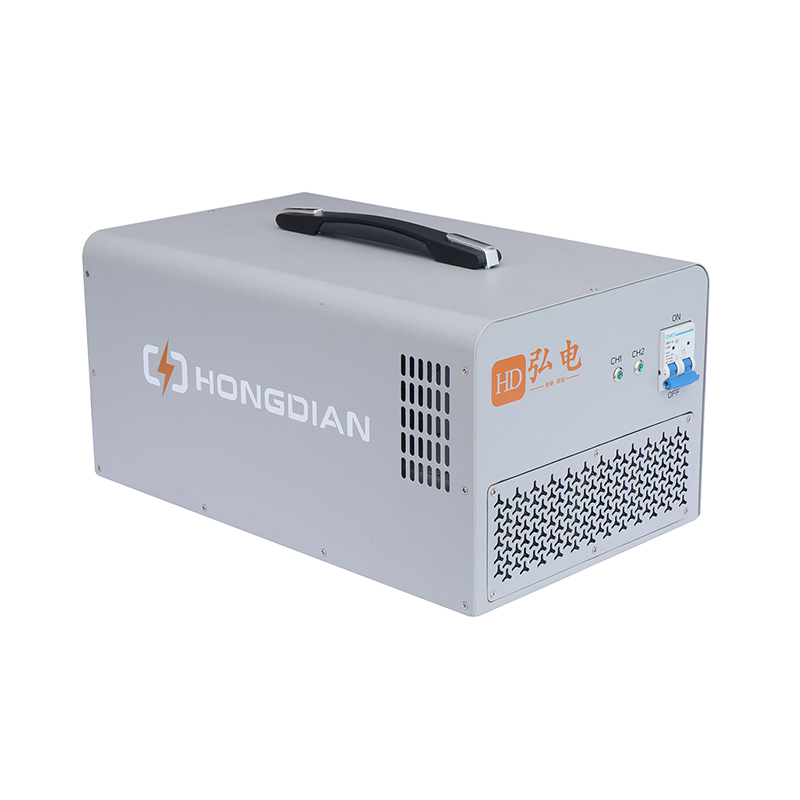

Compact Portable Cabinet for Battery Testing：This compact and portable cabinet is designed for efficient battery charge/discharge testing in a small footprint.

Brand Hongda
Material Metal+ABS
Voltage 60V/100V/120V
Current 30A/60A/100A/120A
Size 41.6 * 23.5 * 25.5cm

product details

Compact Portable Cabinet for Battery Testing：This compact and portable cabinet is designed for efficient battery charge/discharge testing in a small footprint. Ideal for testing batteries with voltages ranging from 60V/100V/120V, it supports 1/2 channels for simultaneous testing. The system offers a precise voltage and current accuracy of 0.05% FS, ensuring reliable results. It is capable of discharging to as low as 6V with a fast current response time of just 10ms, making it suitable for rapid and precise testing of various battery types. Its lightweight design and compact structure make it easy to move and deploy in different testing environments.

Portable cabinet parameters

Voltage	Model	Port definition	Voltage current accuracy	Minimum charge and discharge current	Minimum discharging voltage	Current respoNse time (10%-90%FS)
60V series	HD-60V30A-02CH	Support same/different port modes	0.05%FS	30mA	6V	10ms
	HD-60V60A-02CH		0.05%FS	60mA	6V	10ms
	HD-60V100A-01CH		0.05%FS	100mA	6V	10ms
	HD-60V120A-01CH		0.05%FS	120mA	6V	10ms
100V series	HD-100V30A-02CH		0.05%FS	30mA	6V	10ms
100V series	HD-100V60A-01CH		0.05%FS	60mA	6V	10ms
120V series	HD-120V30A-02CH		0.05%FS	30mA	6V	10ms
120V series	HD-120V60A-01CH		0.05%FS	60mA	6V	10ms

Voltage	Model	Charge discharge\| conversion time	Maximum charging efficiency	Feedback maximum etticiency	volage	Power	Weight	Size
60V series	HD-60V30A-02CH	20ms	92%	90%	AC220V 50Y60±5Hz	3.6KW	≤20KG	W:416mm H:235mm D:255mm
	HD-60V60A-02CH	20ms	92%	90%		7.2KW	≤30KG
	HD-60V100A-01CH	20ms	92%	90%		6KW	≤30KG
	HD-60V120A-01CH	20ms	92%	90%		7.2KW	≤30KG
100V series	HD-100V30A-02CH	20ms	92%	90%		6KW	≤30KG
100V series	HD-100V60A-01CH	20ms	92%	90%		6KW	≤30KG
120V series	HD-120V30A-02CH	20ms	92%	90%		7.2KW	<30KG
120V series	HD-120V60A-01CH	20ms	92%	90%		7.2KW	≤30KG

AC input parameters
Input power supply	AC 220V±10% 50/60±5Hz	Inputimpedance	≥1MΩ
Power factor	≥99%（Full load）	Feedback efficiency （MAX）	≥90%（Full load）
THDI	≤5%（Full load）
DC output parameters
voltage precision	±0.05%FS	Electric current precision	±0.05%FS
voltage Resolution	1mV	Current Resolution	1mA
Current response time	10ms（10%FS ～ 90%FS)	Auxiliary channel type	NTC
Charge and discharge conversion time	20ms（-90%FS ～ 90%FS）	Channel control mode	All channels can be controlled independently
Step function characteristics
Minimum data recording time	10ms	Cycle number	65535
Number of work steps	2000	Loop nesting	5
Support experimental esting	Battery cycle life test、Battery pack capacity test、Battery charge/discharge characteristic test、Charge retention test of battery pack、Charge and discharge efficiency test of battery pack、Charge and discharge efficiency test of battery pack
Charge and discharge mode	Static, pause, constant current charging CC, constant voltage charging CV, constant resistance charging CR, constant current and constant Voltage charging CCCV, constant power charging CP, constant current discharge DC, constant power discharge DP, constant resistance discharge DR, DC Internal Resistance Test (DCIR)
Cut-off condition	Voltage, current, capacity, energy, time, power, number of cycles, BMS parameters, custom advanced parameters (support one or more logic and or combination)
Execution action type	Jump, pause, protect, Next
485/DBC File import	Supports file editing, saving, and importing
DcInternal Resistance Test (DCIR)	SupportDCIRwork step,hardwarereal-imecalculation,supportgraphic twokindsoftesting
Data export mode	Export in Excel or CSV format
Protection function
AC side protection	Powergridvoltage over/under、voltageprotection,surge、protection,anti-island protection, over and under frequencyprotection,hardware over temperature protection, self-detection protection, etc
DC side protection	under voltage protection, hardware over temperature protection, battery channel line reverse connection protection
Battery side comprehensive protection	Upper and lower limit protection of the total battery voltage, upper and lower limit protection of the battery voltage, upper and lower limit protection of the battery temperature, upper and lower limit protection of the battery charge and discharge current, upper and lower limit protection of the battery capacity, BMS communication outage protection, network outage protection, etc
Power failure data protection	With memory power off protection function, it can effectively avoid data loss caused by power off or can continue to run at the process break point without modifying the process after the call
Class of protection	IP20	Cooling mode	Forced air cooling
operating temperature range	0℃-45℃	noise	≤80dB
